Introduction to KD-128PRO development Kit
This development kit uses ATMEGA128 MCU as the AVR microprocessor. System design do not require any complex circuit design steps because ATMEGA128 includes internal ROM, RAM and includes internal AD Converter as well.
This kit includes Main board (AB-M128PRO-A) that has AM-128PRO, ISP Cable (AD-ISPRO),12V 300mA adapter (PW-AD12), Serial Cable (SE-3T9) and other Cable and parts that can be bought in very affordable price.Additionally, the availability of ISP (In System Programming) port enables the user to do development work without the need of expensive devices. Can be used with Parallel port type ISPRO included with this kit or with USB type AD-USBISP sold separately by our company.
All the ports of ATMEGA128 (except PORTG) can be used for developing other products as well by connecting the ports via the 10 pin Header Box.
This product is aimed to help user to easily make AVR MCU development environment and learn. So lots of exercise source code, schematic, lectures etc are included with it.
◈ Another content classification type

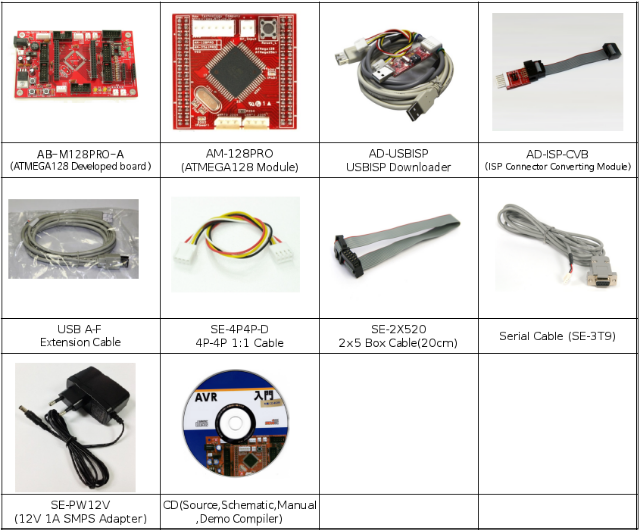

ㆍ KD-128PRO-USB kit components
ㆍ KD-128PRO-USB-L kit components

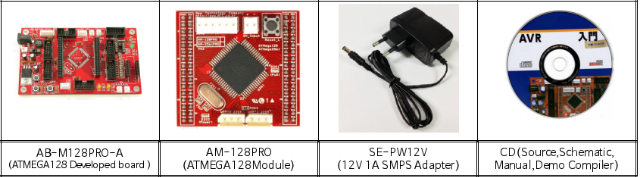

ㆍ KD-128PRO-L kit components
ㆍ AB-M128PRO-A board components ㆍ AB-M128PRO-A Only main board(Modulenot Exist)
